Dscription
Explosion-proof performance in line with GB3836.1-2000 "Electrical apparatus for explosive gas atmospheres Part 1: General requirements",GB3836.2-2000 "Explosion-proof electrical apparatus for explosive gas atmospheres Part 2: Flameproof " d " requirements.
It is suitable for dangerous explosion gas environment.The explosion gas is class IIA,IIB and IIC and the environment group is in the temperature from T1-T6 in Area No.1,No.2,No.20,No.21 and No.22.Such as oil field,chemical plant,steamship,gas station,curative,gas storeroom and so on.

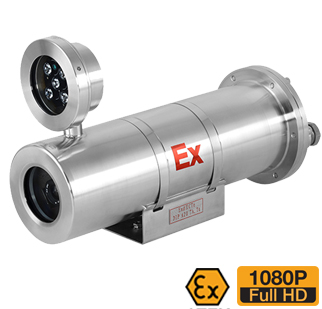

2 MP IR Explosion-Proof IP Camera uses the latest design philosophy, and integrated design with infrared light, the infrared lamp automatically turned on when the visible light insufficient;With advanced manufacturing technology and mature quality management system, makes the quality and performance of the products in the leading position at the same types.The product can be applied separately in environments with flammable and explosive gas, combustible dust, achieve the purpose of monitoring site.
Certificate: ATEX
Marking: Ex II2G db ⅡC T6;
Ex II2D tb IIIC (85°C) Db
Ingress Protection: IP66
Integrate explosion-proof camera and infrared lamp with intelligent design
316L stainless steel, polished finish appearance, corrosion-proof treated internal parts
Silicone O-ring seals
The installation and maintenance of SGC-Ex-SH-I316 are simple and easy
Available Models:SGC-Ex-SH-I316
Model:SGC-Ex-SH-I316 | ||
General | ||
Marking: | | | Ex II2G db ⅡC T6; |
Ex II2D tb IIIC (85°C) Db | ||
Ingress Protection: | | | IP66 |
Operating Conditions: | | | -30 °C ~ 70 °C (-22 °F ~ 158 °F) |
Humidity 95% or less (non-condensing) | ||
Material: | | | 316L stainless steel |
Power Supply: | | | DC12V(AC220V) Optional |
IR Distance: | | | 60 m |
Dimensions: | | | 385mm(L) × 138mm(W) × 145mm(H) |
Unit weight: | | | 6 kg (13.22 lbs) |
Electrical Connectivity: | | | Composite Cable |
Interface spec: | | | 2 × G-3/4'' |
ethod of installation | | | Wall mounting |
Camera | ||
Image Sensor: | | | 1/2.9" SONY CMOS (Fixed optional) |
1/2.8" SONY CMOS (Optical Zoom optional) | ||
Signal System: | | | PAL/NTSC |
Shutter time: | | | 1/50(1/60)s to 1/10,000s |
Lens: | | | 4mm/6mm/8mm (optional) |
Optical Zoom 18X ( optional) | ||
Day& Night: | | | ICR (Auto/Schedule/Alarm Trigger) |
Digital noise reduction: | | | Support 2D/3D |
Compression Standard | ||
Video Compression: | | | H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable |
H.264 code profile: | | | Baseline profile/main profile/high profile |
Video bit rate: | | | 32Kbps~16Mbps |
Image | ||
Max. Image Resolution: | | | 1920 x 1080 |
Frame Rate: | | | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | ||
Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
Network | ||
Protocols: | | | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP |
System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface | ||
Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
