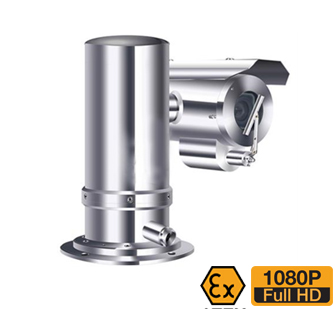

2MP 20X Explosion-Proof IP PTZ Camera DS-2DY9220W-CWXDscription
DS-2DY9220W-CWX is made by Hikvision.
Explosion-proof performance in line with GB3836. 1-2000 "Electrical apparatus for explosive gas atmospheres Part 1: General requirements", GB3836.2-2000 "Explosion-proof electrical apparatus for explosive gas atmospheres Part 2: Flameproof" d "" requirements.
It is suitable for dangerous explosion gas environment.The explosion gas is class IIA, IIB and IIC and the environment group is in the temperature from T1-T6 in Area No.1,No.2,No.20,No.21 and No.22.Such as oil field, chemical plant,steamship,gas station, curative,gas storeroom and so on.
DS-2DY9220W-CWX built-in high-brightness, Explosion-proof camera housing, pan/tilt, decoder, camera and IR lamp highly integrated, easy installation, automatic cruise and preset features, support line scan, area scan,preset cruise.
| Model:DS-2DY9220W-CWX | ||
| General | ||
| Marking： | | | Ex db ⅡC T6 Gb |
| Ex tb IIIC T80°C Db IP68 | ||
| Ingress Protection: | | | IP68 |
| Material: | | | Stainless steel 304, |
| Cable Entry Holes: | 1 × G-3/4″ | |
| RS-485 Protocols: | | | Pelco-P, Pelco-D, self-adaptive |
| Menu Language: | | | English |
| Power Consumption: | | | AC220V，70W Max |
| Working Temperature: | | | -40° C to 60°C (-40° F to 140° F) |
| Humidity： | | | Humidity 95% or less (non-condensing) |
| Dimensions: | | | 285mmx316mmx358mm (11.22" × 12.44" ×14.09") |
| Weight : | | | Approx. 24.5 kg (54 lb) |
| Installation Accessories: | | | Wall Mounting Bracket (Included) |
| Camera | ||
| Image Sensor: | | | 1/2.8" Progressive Scan CMOS |
| Effective Pixels: | | | 1920(H)x1080(V) |
| Signal System: | | | PAL/NTSC |
| Minimum Illumination: | | | Color: 0.05 Lux @(F1.6, AGC ON) |
| B/W: 0.01 Lux @(F1.6, AGC ON) | ||
| White Balance: | | | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | | | Auto/Manual |
| BLC: | | | ON/OFF |
| HLC: | | | Support |
| Smart defog: | | | Support |
| SNR: | | | ＞52dB（AGC off） |
| Shutter Time: | | | 1/1 s to 1/30,000 s |
| Day& Night: | | | ICR |
| Digital Zoom: | | | 16× |
| Privacy Masking: | | | 24 privacy masks programmable; optional multiple colors and mosaics |
| Auto Focus: | | | Auto / Semi-automatic / Manual |
| Lens | ||
| Focal Length: | | | 4.3 mm to 86 mm, 20× optical zoom |
| Zoom Speed: | | | Approx. 3 s (Optical Lens, Wide-Tele) |
| Angle of View: | | | 65.1° to 2.34° (Wide-Tele) |
| Minimum Working Distance: | | | 10 mm to 1500 mm (Wide-Tele) |
| Aperture Range: | | | F1.6 to F4.4 |
| Pan & Tilt | ||
| Horizontal speed (°/s): | | | Fixed (6-20) / 4-20 adjustable / 0.1~40 adjustable |
| Vertical Speed (°/s): | | | Fixed (6-20) / 4-20 adjustable / 0.1~40 adjustable |
| Pan Range: | | | Continuously 360° rotation |
| Tilt Range: | | | ±90° |
| Electric Motor： | | | The permanent magnetism electrical motors of high torque matches the |
| planetary gear reducer of high precision | ||
| Network | ||
| Ethernet: | | | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | | | 1920×1080 |
| Main Stream: | | | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) |
| 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) | ||
| Image Compression: | | | H.265 /H.264/MJPEG |
| Audio Compression: | | | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Protocols: | | | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, |
| DDNS, NTP, RTSP, RTP,TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | ||
| No. of Simultaneous Users: | | | Up to 20 users |
| Three-Stream: | | | Support |
| Mini SD Card: | | | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level: | | | Up to 32 users |
| 3 levels: Administrator, Operator and User | ||
| Security Measures: | | | User authentication (ID and PW), |
| Host authentication (MAC address) | ||
| IP address filtering | ||
| Client GUI | ||
| Date & Time Display: | | | Time: Week: Date, 6 formats on the Client |
| Client: | | | Support iVMS-4200 |
| Web Browser: | | | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language |
