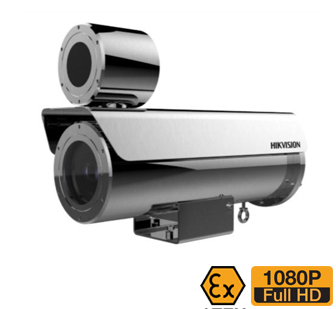

2 MP ICR Explosion-Proof IP Bullet Camera DS-2XE6422FWD-IZHRSDscription
DS-2XE6422FWD-IZHRS is made by Hikvision.
Explosion-proof performance in line with GB3836. 1-2000 "Electrical apparatus for explosive gas atmospheres Part 1: General requirements", GB3836.2-2000 "Explosion-proof electrical apparatus for explosive gas atmospheres Part 2: Flameproof" d "" requirements.
It is suitable for dangerous explosion gas environment.The explosion gas is class IIA, IIB and IIC and the environment group is in the temperature from T1-T6 in Area No.1,No.2,No.20,No.21 and No.22.Such as oil field, chemical plant,steamship,gas station, curative,gas storeroom and so on.
FeaturesParametersDimensionsInstallationAccessories
Applicable to Zone 0 and dust-ignition environment.
Stainless steel 304, polished finish appearance, corrosion-proof treated internal parts.
Silicone O-ring seals.
Infrared distance of up to 30 meters.
Wiper.
The installation and maintenance of DS-2XE6422FWD-IZHRS are simple and easy.
| Model：DS-2XE6422FWD-IZHRS | ||
| General | ||
| Marking： | | | Ex db ⅡC T6 Gb |
| Ex tb IIIC T80°C Db IP68 | ||
| Ingress Protection | | | IP68 |
| Operating Conditions: | | | -40 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | ||
| Material: | | | Stainless steel 304 |
| Power Supply: | | | AC 100 V to 240 V |
| Power Consumption: | | | Max. 7W |
| IR distant: | | | 80m |
| Dimensions: | | | 513.2× 169 × 308 mm |
| Weight: | | | 19.6 kg |
| Method of Installation: | | | Wall Mounting |
| Camera | ||
| Image Sensor: | | | 1/2.8" Progressive Scan CMOS |
| Signal System: | | | PAL/NTSC |
| Min. Illumination: | | | Color 0.01Lux @ F1.2, black and white 0.001 Lux@F1.2 |
| Shutter time: | | | 1 s to 1/100,000 s |
| Lens: | | | 4X Optical Zoom |
| F=2.8～12mm(DS-2XE6422FWD-IZHRS) | ||
| Day& Night: | | | ICR (Auto/Schedule/Alarm Trigger) |
| Wide Dynamic Range: | | | 120 dB |
| Digital noise reduction: | | | 3D DNR |
| IR switch： | | | Auto-turn on when the illumination lower than 0 Lux |
| Compression Standard | ||
| Video Compression: | | | H.264,support dual-stream,AVI;0.1M~6Mpbs variable;1~30f/s variable |
| H.264 code profile: | | | Baseline profile/main profile/high profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Frame Rate: | | | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | ||
| Image Enhancement: | | | BLC/3D DNR |
| Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | | | Support |
| 3D DNR: | | | Support |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Network Storage: | | | local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols: | | | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
